Product Details
4x4 Matrix Membrane Keypad High Performance, Ultra thin Interface Solutions

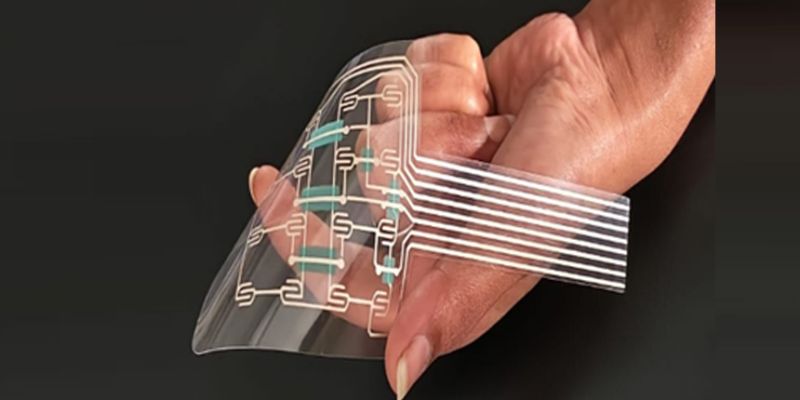

Our 16-button 4x4 matrix membrane keypad is a versatile and durable human interface component designed for seamless integration into microcontroller-based projects. Featuring an ultra-thin design (0.5 MM to 1.5 MM) and 3M adhesive backing (IPC62 standard), it offers a reliable, cost-effective, and space-saving solution for various industrial and commercial applications.
Advantages
- Flat & Flexible - Ideal for compact designs requiring a sleek, low-profile interface.
- Sealed & Durable - Resistant to dust, moisture, and contaminants, perfect for harsh environments.
- Cost-Effective - A high-quality yet affordable alternative to traditional keypads.
- Customizable - Options for graphic overlays, key sizes, and shapes to match unique requirements.
- Consumer Electronics – Remote controls, calculators, and home appliances.
- Medical Devices - Blood pressure monitors, infusion pumps, and diagnostic equipment.
- Industrial Control Panels - Machinery, automation systems, and equipment interfaces.
- Point-of Sale (POS) System - Secure keypads for payment terminals and self-service kiosks.

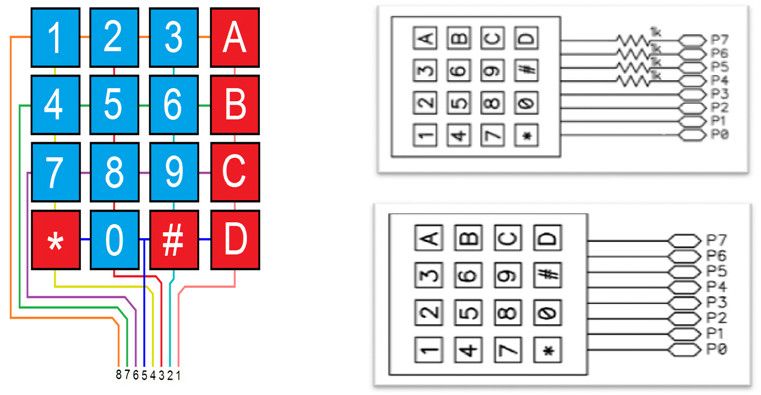

Matrix Keypad - Functionality & Connection Overview
A 4x4 matrix keypad operates using a structured combination of four rows and four columns, providing efficient button state detection for microcontrollers and host devices. Each key contains an embedded push-button switch, where one terminal is connected to a row and the other to a column.
How It Works ?
- The microcontroller scans the keypad by sequentially pulling each of the four column pins (1-4) HIGH or LOW while monitoring the state of the four row pins (5-8).
- When a key is pressed, it completes a circuit between a specific row and column, enabling the microcontroller to identify the exact key pressed. This method ensures an efficient, low-power, and interference-free way to register key inputs.
Specification
| Test | Standard specifications | Actual testing result |
| Numbers of keys | 16 | 16 |
| Key arrangement | 4 rows x 4 columns | 4 rows x 4 columns |
| Key label | 0-9,*,#, A,B,C,D | 0-9,*,#, A,B,C,D |
| Interface | Matrix scanning | Achieved |
| Operating voltage | 5 VDC TO 24 VDC | 24 VDC checked |
| Operating current | 10 mA to 30 Ma | 15mA |
| Operating temperature | -10°C to + 70 °C | + 35 degree checked |
| Key travel | 0.1 to 0.5 mm | 0.03 mm |
| Key force | 50 gm to 150 gm | 100 gm |
| Bounce time | Less then 35ms | <=15ms |
| Life testing | 1 million actuations per key | still continues20000 done |
| Dimensions (L x W x H) | NA | 160mm x70mm x1.5mm |
| Tail Length | Optional | 3-1/3" or 85mm (include connector) |
| Connector Type | 8 pins / 2.54pinch | FRC 8 pins(2.54 pinch) |
| Overlay Material | Optional | Polyester 100 micron |
| Backlighting | Optional | NA |
| Overlay Graphics | Screen / digital printing | Digital |
| Embossing/Debossing | +0.5 mm – less 3mm | + 1.5 mm |
| Key Actuation Force | + 50gm – less 250gm | 100gm |
| Environmental Sealing | Optional | Done with 3M |
| Weight | Optional | 8 gms |
| Mount Style | Self –adhesive | Self-Adherence |
