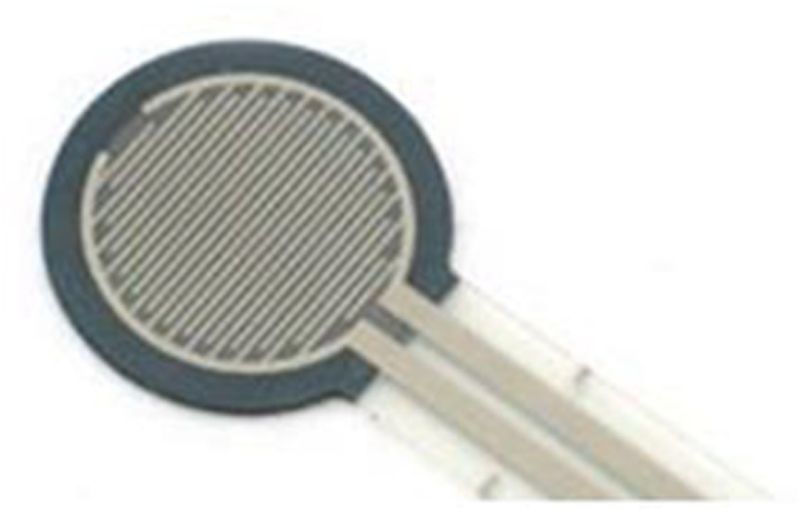

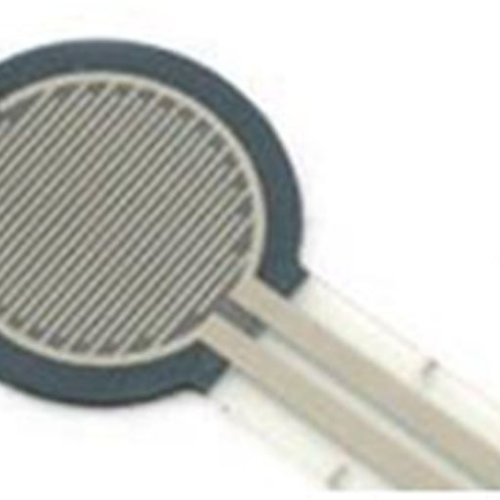

Force Sensing Resistor

FSRs are sensors that allow you to detect physical pressure, squeezing and weight. They are simple to use and low cost.FSRs are basically a resistor that changes its resistive value (in ohms Ω) depending on how much it is pressed. These sensors are fairly low cost, and easy to use but they're rarely accurate. They also vary some from sensor to sensor perhaps 10%. So basically when you use FSRs you should only expect to get ranges of response.

General Specifications - Dimensions

• Length: 38 mm
• Width: 17 mm
• s 0.446 mm

Sensing Area: 12 mm (circular sensing area)

Connector:Type: 2-pin female connector

Pin spacing: 2.54 mm

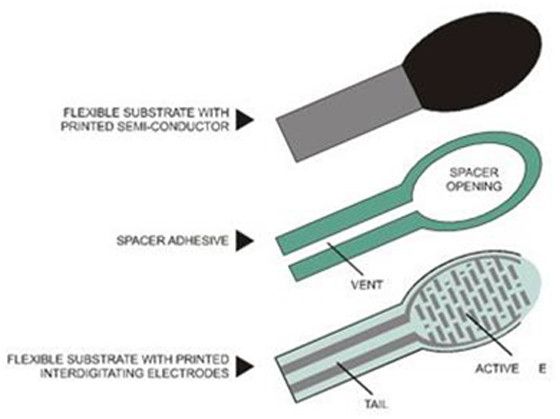

Material:

• Substrate: Polyester
• Conductive Elements: Silver and carbon ink

Performance Metrics

Operating Temperature Range: From -50°C to 75°C

Force Range: 200 grams to 20 kilograms

Sensitivity: Resolution: 200 grams

Mechanical Drawing - Sensor Dimensions (in mm):

• Total Length: 38 mm
• Width: 17 mm
• Sensing Area: 12 mm diameter
• Connector Pins: 6 mm pin length

Environmental Specifications

• Operating Conditions: Temperature: -50°C to 75°C / Humidity: Up to 90% RH (non-condensing)
• Storage Conditions: Temperature: -40°C to 85°C
